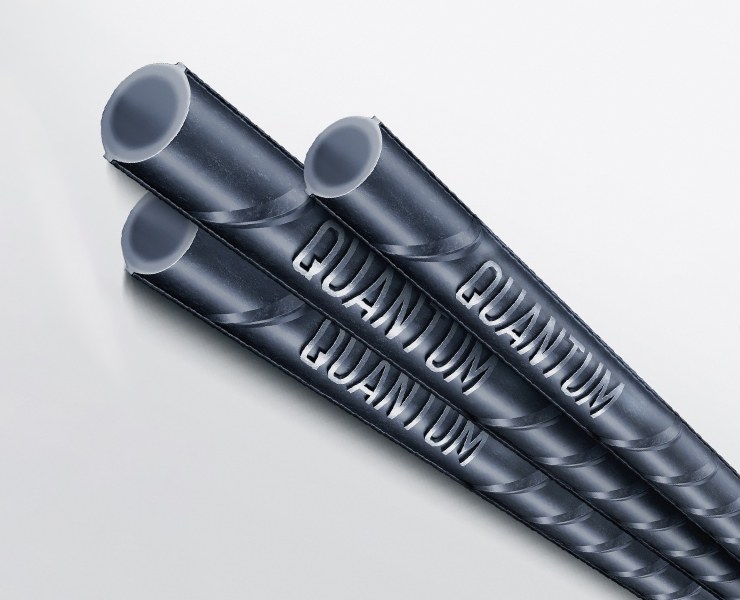

GPH Quantum B420DWR Rebar

Available Size

  • 8mm

  • 10mm

  • 12mm

  • 16mm

  • 20mm

  • 22mm

  • 25mm

  • 28mm

  • 32mm

  • 40mm


  • BDS ISO 6935-2:2021: grade B420DWR

Gph quantum is capable to maintain these standards

  • ASTMA615/A 615M-16 Deformed and Plain Carbon-Steel Bars for Concrete Reinforcement1 (American standard). Gr-60[420]

  • ASTM A706/A706M-15 Deformed and Plain Low-Alloy Steel Bars for Concrete Reinforcement1 (American standard). Gr-60[420],

  • BDS ISO 6935-2:2021 Steel for the Re-enforcement of Concrete, Part-2 Ribbed bars (Bangladesh Standard). (B420DWR)

  • IS G 3112:1987-Steel bars for concrete reinforcement (Japanese Standard). (SD390)

  • IS 1786:2008+A3:2017 High-strength deformed steel bars and wires for concrete reinforcement (Indian Standard). (Fe 415)

  • GB/ T 1499.2-2018 Steel for the Reinforcement of concrete Part 2: Hot rolled ribbed bars (Chinese standard). (HRB400, HRBF400)

  • DIN 488-1:1984 Steel rebar - reinforcing of concrete (German Standard). (BST 420S)

Chemical composition of product analysis as per international standard

ElementBDS ISO 6935-2:2021ASTM A706/A706M-15ASTM A615/A615M-16
% С0.33 max.0.33 max-
% Si0.60 max.055 max.-
% Mn1.56 max.1.56 max.-
% P0.048 max0.043 max0.075 max
% S0.048 max0.053 max-
% N0.014max.--
% CEV0.61 max.0.59 max-
